MailMarshal e10000

MailMarshal in a Box—Ready to Go!

The MailMarshal e10000 unifies anti-spam, anti-virus, data leakage prevention and security policy enforcement technologies into a single, easy-to-manage appliance, delivering the best of both software and hardware. It's easy to deploy, provides hardened security and very low administration requirements. It also offers a flexible, upgradeable platform easily scaled to meet the needs of the enterprise. In fact, the e10000 spam, virus and data protection solution can be deployed as a standalone email gateway or multiple appliances can be administered from a central console, enabling the e10000 to support the largest enterprise environments.

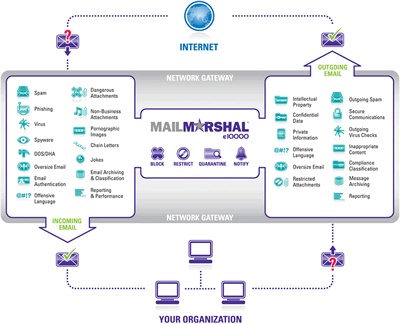

MailMarshal e10000 Diagram

Features

  • Blocks spam, phishing, email viruses, malware
  • Manages attachment send/receive permissions by file size and type
  • Detects key words and phrases using lexical analysis
  • Stops relay attempts, denial of service attacks, directory harvesting attacks, and other anomalous email activity
  • Provides detailed activity and security status reports
  • Comprehensive inbound/outbound email scanning prevents data leakage
  • Supports native active directory (AD) or lightweight directory access protocol (LDAP)
  • Provides bandwidth cost apportioning and fault diagnostic systems
  • Context-sensitive email archiving
  • Pornographic image detection (optional)
  • Reporting and message classification

Benefits

  • Enforces AUP
  • Enforced corporate use policy and regulatory compliance
  • Safer and more productive work/learning environment
  • Reputation protected against damaging or embarrassing content
  • Mitigates content-related legal liability
  • Flexible and adaptable to complex policies
  • Easy set-up and powerful administration
  • Self-maintained platform
  • Highly scalable

Technical Data

  • Platform - M86 Security MTA and Hardened Operating System
  • Chassis - Standard 1U 19" Rack Chassis with Mounting Rails
  • Dimensions - 16.8"W x 1.7"H x 22.6"D
  • Processor - 3.4Ghz Pentium 4 CPU
  • Memory - 2GB SDRAM (2 x 1GB)
  • Storage - Twin 250GB 7,200RPM Mirrored SATA Drives (hot swappable)
  • Connectivity - 2 x GigE Network Interfaces (one for management, one for data)
  • Power - 300W Power Supply, 100/240 Volts
  • Performance - 60,000 messages per hour*

*Performance figures are based on M86 Security testing. Live performance may vary.

Deployment
The MailMarshal e10000 is designed to be deployed as the first receiving email gateway in your organization. It is typically deployed in the DMZ between your network firewall and the trusted internal network.

Technical Data Specs

The e10000 can be deployed in a standalone configuration with database logging and the administration console located within your trusted environment. The e10000 acts as an email processing node and can process in the range of 60,000 messages per hour.

The e10000 is also specifically designed to support multiple distributed appliances configured in an array. The array is managed centrally by the MailMarshal Array Manager which can control and manage multiple e10000 appliance nodes. Administration can be performed locally or remotely via the MailMarshal Web Console.

Sizing
A single MailMarshal e10000 appliance can process enough email volume to theoretically support a 10,000-user organization. However, the e10000 is specially designed to provide easy, cost effective deployment of an array of email security servers. M86 Security recommends that any organization that is dependant on the continuity of their email network to consider deploying two or more M86 Security Security Appliances to provide fault tolerance in the unlikely event of a hardware failure.

Please contact M86 Security for sizing and deployment advice for you organization or to arrange a free trial.

M86 Security offers a free 'Try Before You Buy' program* for the MailMarshal e10000. Please contact M86 Security to arrange a complimentary trial.

*Conditions apply.

Product Information

PDF M86 Security Security Appliance - MailMarshal e10000 for SMB
A summary of enterprise-class email security protection against spam and other malware straight out of the box, for small and medium businesses.

PDF M86 Security Security Appliance - MailMarshal e10000 for Enterprises
A summary of functionality and scalability of an enterprise software solution in a convenient appliance form factor, for large Enterprises.

Deep Image Analysis

Image Analyzer - an optional module for MailMarshal that scans images for pornographic content. This allows you to identify and block inappropriate images attached to incoming or outgoing email. For more information, see Image Analysis benefits.

Operations Management

MOM Management Pack - Allows integrated monitoring of MailMarshal e10000 appliances using Microsoft Operations Manager 2005. For more information, please see MailMarshal SMTP MOM Management Pack.
